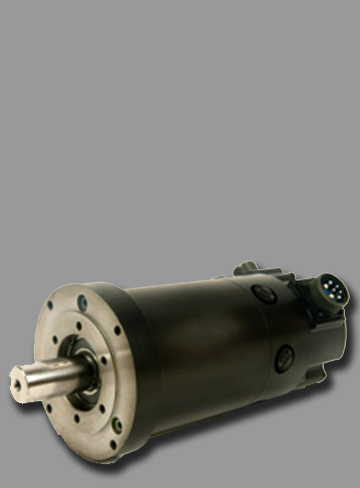

Brushless DC Servo Motors
-
Brushless DC Servomotors

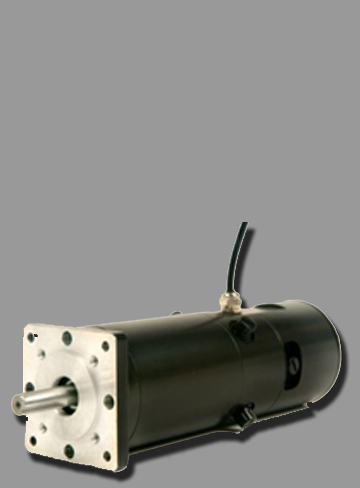

Standard Frame sizes Round Mounting and body: 22 mm, 28 mm, 33 mm, 36 mm, 39 mm, 42 mm, 57 mm, 60 mm Square Mounting and body: 42 mm, 52 mm, 57 mm, 80 mm, 86 mm, 90 mm, 110 mm, 130 mm NEMA configurations: 17, 23 and 34
• Copper wound stators
• Stator wound for variable DC bus voltage which includes high voltage to match drives operating directly off the AC power line; 120 VAC, 220 VAC, 380 VAC and 480 VAC
• Neodymium magnets or ferrite
• Different frame sizes come with 2 poles to 10 poles (1 to 5 pole pairs)
• Silicon plate laminations or segmented laminations
• Feedback Options: Optical Encoders, Capacitive Encoder – programmable resolution/automatic phasing, Magnetic Encoders and Absolute Encoders
• Fail-safe brakes
• IP40 – IP68 environmental ratings
• Gearboxes are available on all motors
Typical frame sizes and specifications:
