Voltage Range: 12, 24, 60VDC
Power Range: 15 ~ 600W
Speed Range: Up to 10,000 rpm
Insulation Class: F (consult us for class B)
Bear Type: High quality ball bearings
Housing Type: Closed (ventilated also available)
Call us for More Information

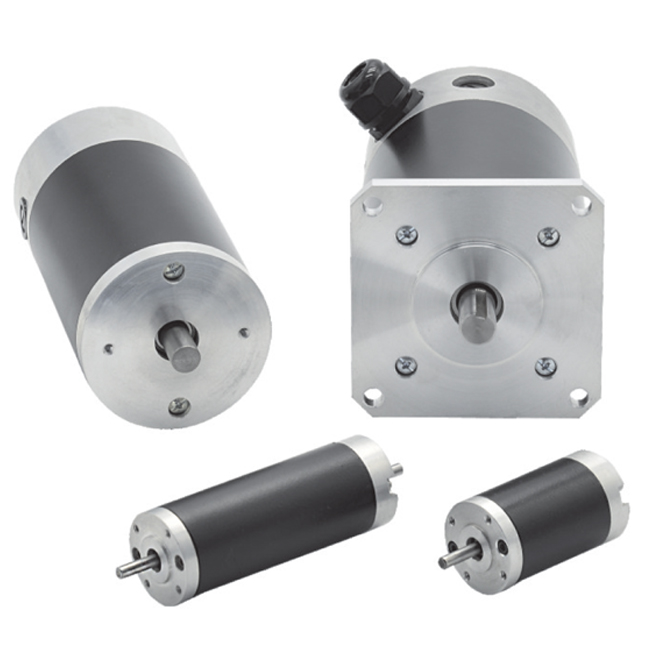

Right combination of high precision, low noise and smooth rotation and high temperature capability. BMG Series can be made waterproof, shockproof and salt-spray-resistant meeting IP 65-67 standards.

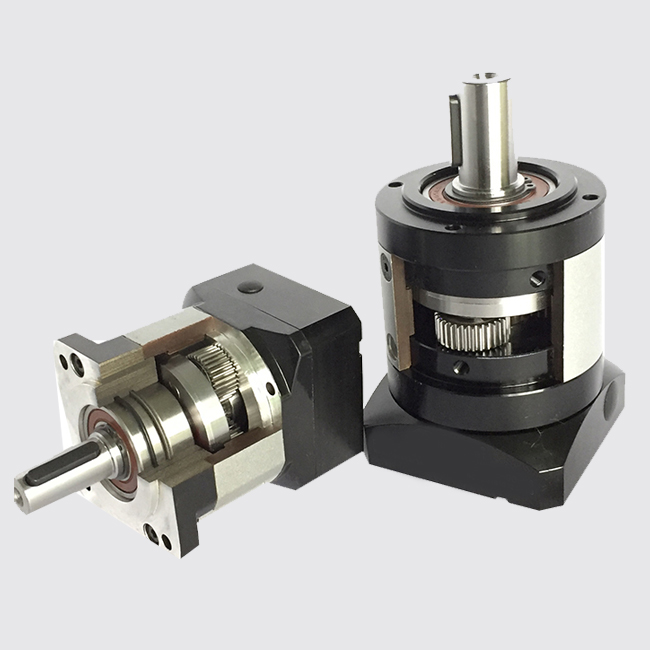

Feedbacks: Encoder, resolver, brake, hall sensor, tachometer, gearhead
Options: Brushed servomotors, high flux density magnet brushed servomotors.

Call us for More Information

Up to 14,000 rpm
Torque (max): 1.32 ~ 220 mNm
Call us for More Information

Permanent magnet brush DC motor, replaceable brushes, high quality bearings,

Opions:
Customized voltage, winding, shaft, mounting and lead configurations
EMI/RFI suppression circuit, thermal protection, high temperature class H insulation
Call us for More Information

Voltage Range: 12, 24 VDC, also 240V
Power Range: 15 ~ 20 W
Speed Range: Up to 10,000 rpm
Insulation Class: F (consult us for class B)
Bear Type: High quality ball bearings
Housing Type: Closed (ventilated also available)
Rate Power: 8.17, 15.1 W
Rated Speed: 7100 rpm
Rated Torque: 11, 16 mNm
Rated Current: 0.41, 0.73, 0.79, 1.45 A
Call us for More Information

Voltage Range: 12, 24 VDC, also 240V
Power Range: 15 ~ 40 W
Speed Range: Up to 10,000 rpm
Insulation Class: F (consult us for class B)
Bear Type: High quality ball bearings
Housing Type: Closed (ventilated also available)
Rate Power: 17, 23, 29 W
Rated Speed: 4200, 4950, 5000, 5100 rpm
Rated Torque: 33, 43, 67 mNm
Rated Current: 0.89, 1.117, 1.46, 1.8, 2.39, 2.92 A
Call us for More Information

Voltage Range: 12, 24, 40 VDC, also 240V
Power Range: 20 ~ 60 W
Speed Range: Up to 10,000 rpm
Insulation Class: F (consult us for class B)
Bear Type: High quality ball bearings
Housing Type: Closed (ventilated also available)
Rate Power: 25, 41 W
Rated Speed: 3100, 3300, 3500 rpm
Rated Torque: 70, 125 mNm
Rated Current: 1.28, 2.6, 4 A
Call us for More Information

Voltage Range: 12 ~ 60 VDC
Power Range: 30 ~ 100 W
Speed Range: Up to 10,000 rpm
Insulation Class: F (consult us for class B)
Bear Type: High quality ball bearings
Housing Type: Closed (ventilated also available)
Rate Power: 24, 25, 36, 41, 45, 58, 59, 60, 62, 75, 76, 105, 108 W
Rated Speed: 2510, 2590, 2790, 2830, 2840, 2880, 2910, 3130, 3220, 3280, 3300, 3340, 3430, 3490 rpm
Rated Torque: 71, 98, 99, 125, 148, 183, 219, 261, 353 mNm
Rated Current: 0.89, 1.14, 1.28, 1.39, 1.8, 1.83, 2.2, 2.99 3.57, 4.57, 5.63, 7.2, 7.34, 9.31, 9.98 A
Call us for More Information

Voltage Range: 12, 24, 40 VDC also 240 VAC
Power Range: 40 ~ 100 W
Speed Range: Up to 10,000 rpm
Insulation Class: F (consult us for class B)
Bear Type: High quality ball bearings
Housing Type: Closed (ventilated also available)
Rate Power: 32.7, 44.5, 48.7, 93.3, 94.7, 97.5 W
Rated Speed: 1840, 3000, 3100, 3300, 3450, 3500 rpm
Rated Torque: 133, 137, 170, 270 mNm
Rated Current: 1.7, 2, 3, 5, 5.2, 10.5 A
Call us for More Information

Voltage Range: 12, 24 VDC also 48 V
Power Range: 90 ~ 150 W
Speed Range: Up to 9,000 rpm
Insulation Class: F (consult us for class B)
Bear Type: High quality ball bearings
Housing Type: Closed (ventilated also available)
Rate Power: 90, 100, 120, 130, 134, 145, 150, 170 W
Rated Speed: 3000, 3200, 3400, 3700, 3900, 4400, 4700 rpm
Rated Torque: 200, 300, 400, 500 mNm
Rated Current: 5.5, 7.5, 8.5, 9, 11, 13, 15, 18 A
Call us for More Information

Voltage Range: 12, 24, 40 VDC also 48 V
Power Range: 90 ~ 150 W
Speed Range: Up to 9,000 rpm
Insulation Class: F (consult us for class B)
Bear Type: High quality ball bearings
Housing Type: Closed (ventilated also available)
Rate Power: 54, 60, 88, 106, 128, 201, 207, 221 W
Rated Speed: 1025, 1200, 1430, 2900, 3100, 3200, 3350, 3500 rpm
Rated Torque: 350, 430, 620, 630 mNm
Rated Current: 2, 3.5, 4, 4.2, 5.5, 5.8, 6, 7.1, 10, 11.5 A
Call us for More Information

Voltage Range: 12, 24 VDC also 48 V
Power Range: 150 ~ 300 W
Speed Range: Up to 9,000 rpm
Insulation Class: F (consult us for class B)
Bear Type: High quality ball bearings
Housing Type: Closed (ventilated also available)
Rate Power: 95, 150, 250 W
Rated Speed: 1055, 1200, 4750 rpm
Rated Torque: 400, 500, 1200 mNm
Rated Current: 5.5, 11.5, 13.8, 23 A
Call us for More Information

Voltage Range: 12, 24 VDC also 48 V
Power Range: 90 ~ 150 W
Speed Range: Up to 9,000 rpm
Insulation Class: F (consult us for class B)
Bear Type: High quality ball bearings
Housing Type: Closed (ventilated also available)
Rate Power: 188, 197, 290, 348 W
Rated Speed: 1500, 2350, 3450, 4150 rpm
Rated Torque: 0.8, 1.2 mNm
Rated Current: 13, 15.6, 20.3, 22, 24.5, 32.5 A
Call us for More Information

Voltage Range: 12, 24, 48 VDC also 220 V
Power Range: 250 ~ 600 W
Speed Range: Up to 9,000 rpm
Insulation Class: F (consult us for class B)
Bear Type: High quality ball bearings
Housing Type: Closed (ventilated also available)
Rate Power: 283, 514, 553 W
Rated Speed: 2700, 3070, 3300 rpm
Rated Torque: 1, 1.6 mNm
Rated Current: 14.3, 26, 34.6 A
No Load Current: 2.5, 2.6, 4.9 A
Call us for More Information
