DC Brushless Gear Motors
-
60 Series Brushless
Voltage 24/36/48/110/220VDC
Rated Continuous Power: 25W
Rated Speed: 2500 r/min
Rated Torque: 0.096 N.m
Instantaneous Max. Torque: 0.144 N.m
Speed: 200-2500 rpm
Call us for More Information -

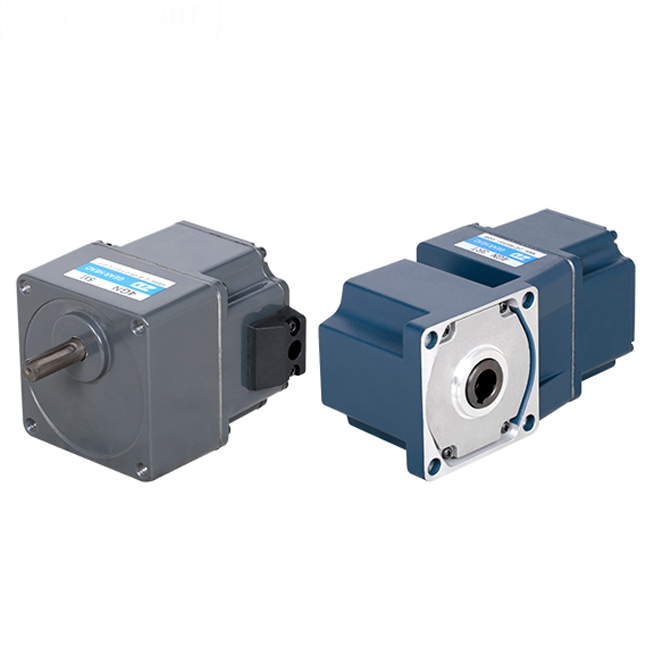

80 Series Brushless
Voltage 24/36/48VDC
Rated Continuous Power: 60W
Rated Speed: 2500 r/min
Rated Torque: 0.23 N.m
Instantaneous Max. Torque: 0.345 N.m
Speed: 200-2500 rpm
Call Us for More Information -

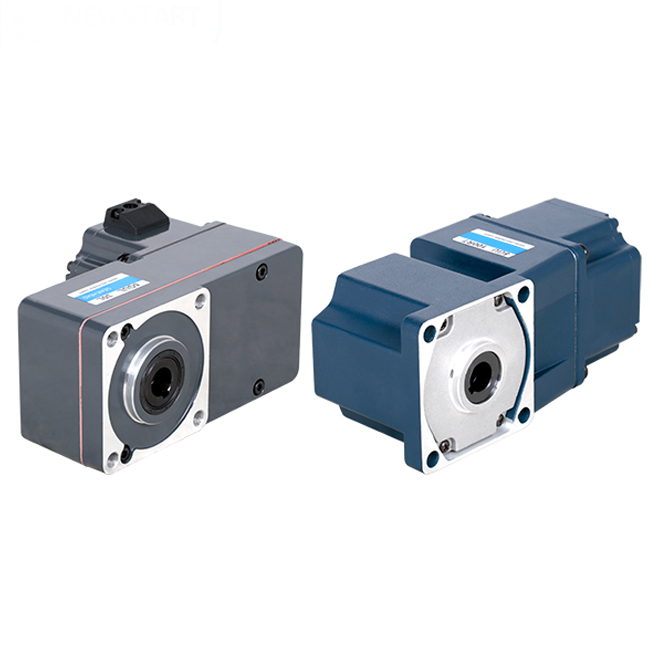

90 Series Brushless
Voltage 24/36/48VDC
Rated Continuous Power: 60W
Rated Speed: 2500 r/min
Rated Torque: 0.23 N.m
Instantaneous Max. Torque: 0.345 N.m
Speed: 200-2500 rpm
Call Us for More Information -
100 Series Brushless
Voltage 24/36/48VDC
Rated Continuous Power: 120W
Rated Speed: 2500 r/min
Rated Torque: 0.458 N.m
Instantaneous Max. Torque: 0.687 N.m
Speed: 200-2500 rpm
Call Us for More Information -
104 Series Brushless
Voltage 24/36/48VDC
Rated Continuous Power: 200W
Rated Speed: 2500 r/min
Rated Torque: 0.764 N.m
Instantaneous Max. Torque: 1.146 N.m
Speed: 200-2500 rpm
Call Us for More Information -

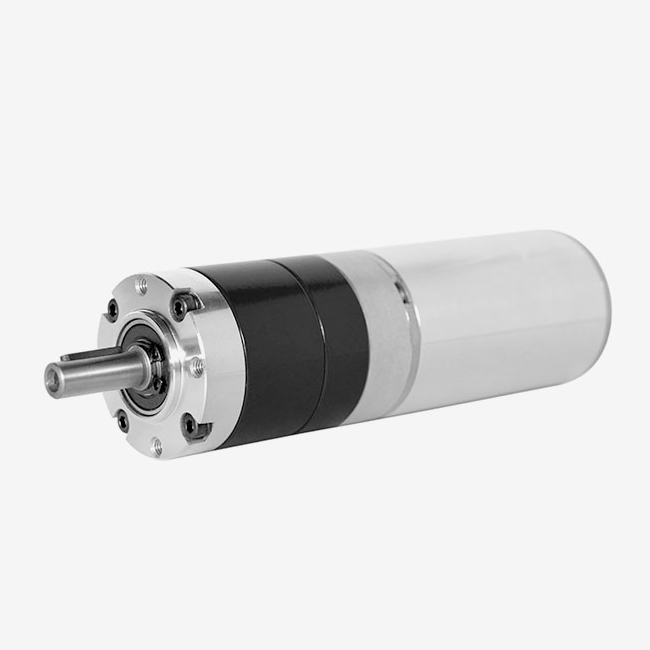

42BAY Series Brushless DC Geared Motor
Voltage 24 VDC
Number of Poles: 4, Number of Phase: 3
Line to Line Resistance:1.45±10% ohms
Line to line inductance:1.27±20% mH
Rated Continuous Power: 50W
Rated Speed: 3000 rpm
No-Load Speed: 4300 rpm
Output Torque: 7.5 N.m
Rated Torque: 0.16, 3.2 N.m
Rated Power: 50 W
Rated Current: 3.2A
Output Speed: 51.5 rpm
Gear Ratio: 1:58:22
Class Insulation: B
Torque Constant: 0.05 Nm/A
Back E.M.F: 3.947 V/kRPM
Rotor Inertia: 14.6 g.cm2
Call Us for More Information -

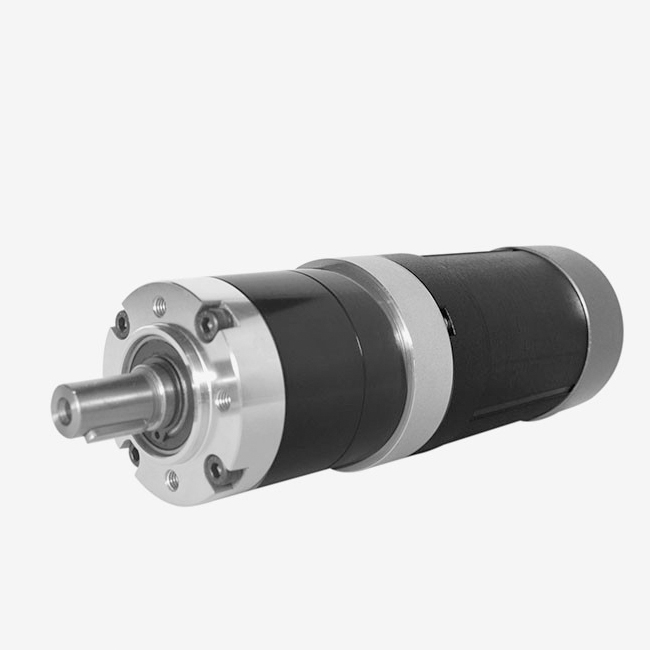

57BAY Series Brushless DC Geared Motor
Voltage 24 VDC
Number of Poles: 4 , Number of Phase: 3
Line to Line Resistance:0.25±10% ohms
Line to line inductance:0.73±20% mH
Rated Continuous Power: 50W
Rated Speed: 3000 rpm
No-Load Speed: 4000 rpm
Rated Torque: 0.44 N.m
Rated Power: 138 W
Rated Current: 8.2 A
Peak Torque: 1.32 N.m
Continuous Stall Torque: 0.528 N.m
Class Insulation: B
Peak Current: 24.6 A
Torque Constant: 0.053 Nm/A
Back E.M.F: 4.24 V/kRPM
Rotor Inertia: 181.5 g.cm2
Gear Ratio: 1:33:92
Output Torque: 12 N.m
Output Speed: 88.5 rpm
Call Us for More Information -

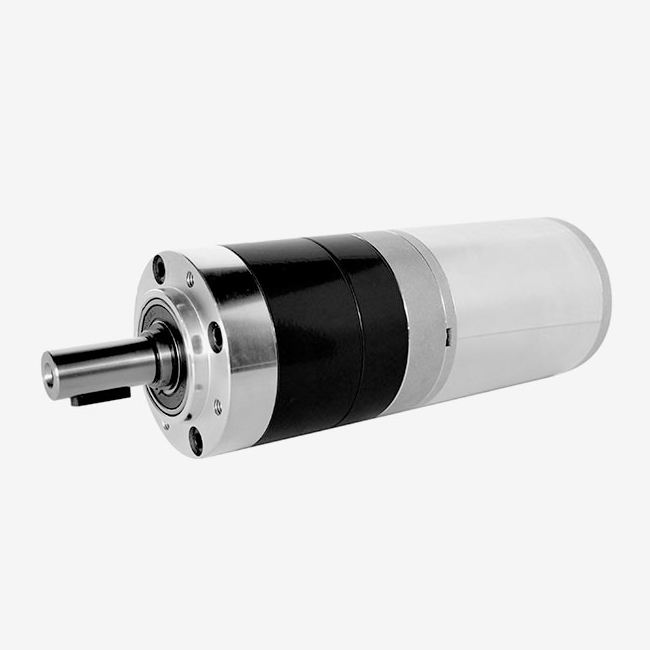

60BAY Series Brushless DC Geared Motor
Voltage 24 VDC
Number of Poles: 8 , Number of Phase: 3
Line to Line Resistance:0.15±10% ohms
Line to line inductance:0.33±20% mH
Rated Continuous Power: 200W
Rated Speed: 3000 rpm
No-Load Speed: 4000 rpm
Peak Torque: 1.911 N.m
Rated Power: 200 W
Rated Current: 8.2 A
Continuous Stall Torque: 0.7644 N.m
Class Insulation: B
Peak Current: 36 A
Torque Constant: 0.053 Nm/A
Back E.M.F: 4.24 V/kRPM
Rotor Inertia: 140 g.cm2
Gear Ratio: 1:44:69
Output Torque: 23 N.m
Output Speed: 67 rpm
Call Us for More Information -

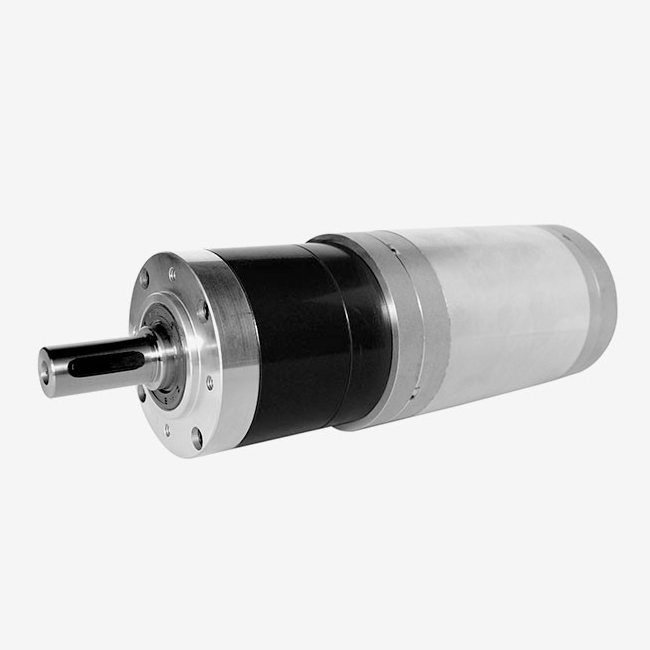

80BAS Series Brushless DC Geared Motor
Voltage 48 VDC
Number of Poles: 4 , Number of Phase: 3
Line to Line Resistance:00.56±10% ohms
Line to line inductance:1.187±20% mH
Rated Continuous Power: 691W
Rated Speed: 3000 rpm
No-Load Speed: 4000 rpm
Peak Torque: 6.6 N.m
Rated Power: 691 W
Rated Current: 8.2 A
Continuous Stall Torque: 2.64 N.m
Class Insulation: B
Peak Current: 61.5 A
Torque Constant: 0.107 Nm/A
Back E.M.F: 4.24 V/kRPM
Rotor Inertia: 1.82 g.cm2
Gear Ratio: 1:33:92
Output Speed: 88.5 rpm
Output Torque: 60 N.m
Call Us for More Information -

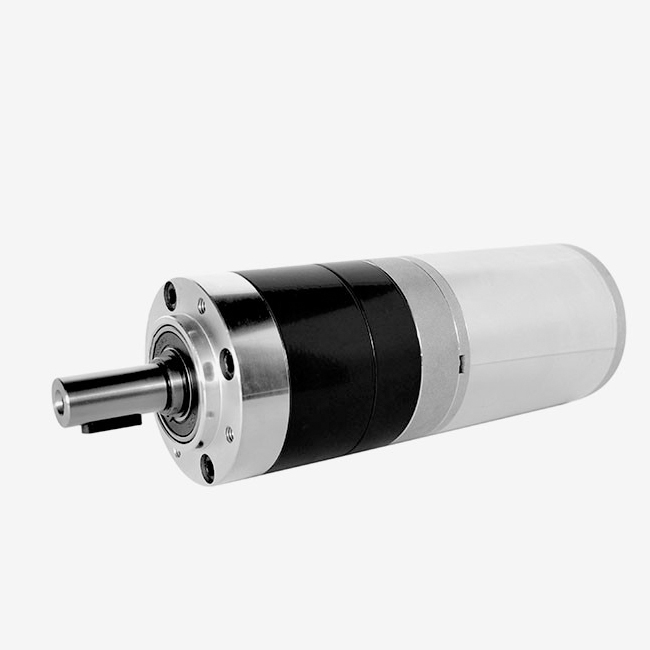

90BAS Series Brushless DC Geared Motor
Voltage 48 VDC
Number of Poles: 4 , Number of Phase: 3
Line to Line Resistance:0.13±10% ohms
Line to line inductance:0.46±20% mH
Rated Continuous Power: 691W
Rated Speed: 3000 rpm
No-Load Speed: 4000 rpm
Peak Torque: 6.6 N.m
Rated Torque: 2.2 N.m
Rated Output Power: 691 W
Rated Current: 21 A
Continuous Stall Torque: 2.64 N.m
Class Insulation: B
Peak Current: 61.5 A
Torque Constant: 0.107 Nm/A
Back E.M.F: 4.24 V/kRPM
Rotor Inertia: 2.95 g.cm2
Gear Ratio: 1:58:22
Output Speed: 51.5 rpm
Output Torque: 105 N.m
Call Us for More Information
